Mugen Seiki MTC-3 Pre-Order

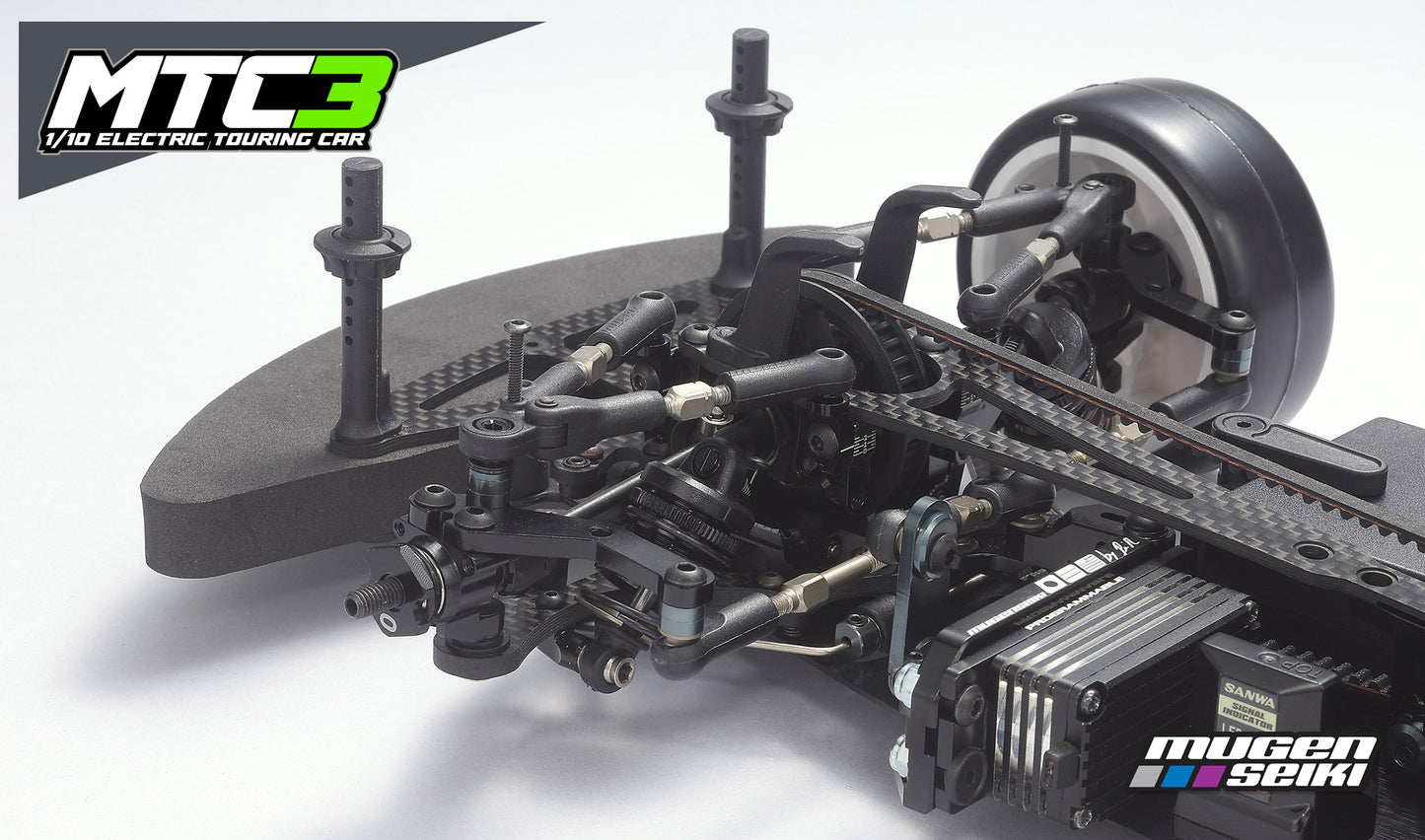

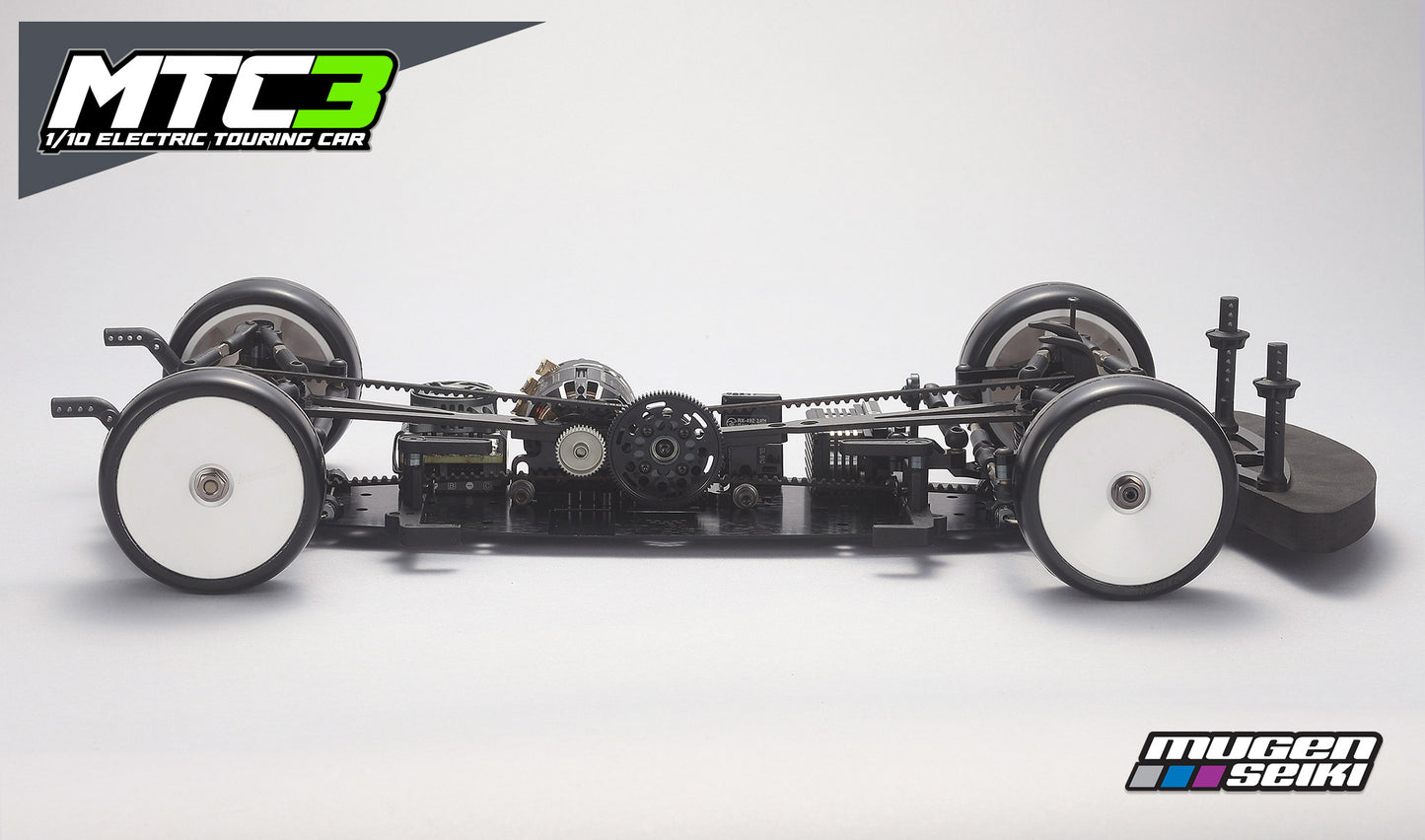

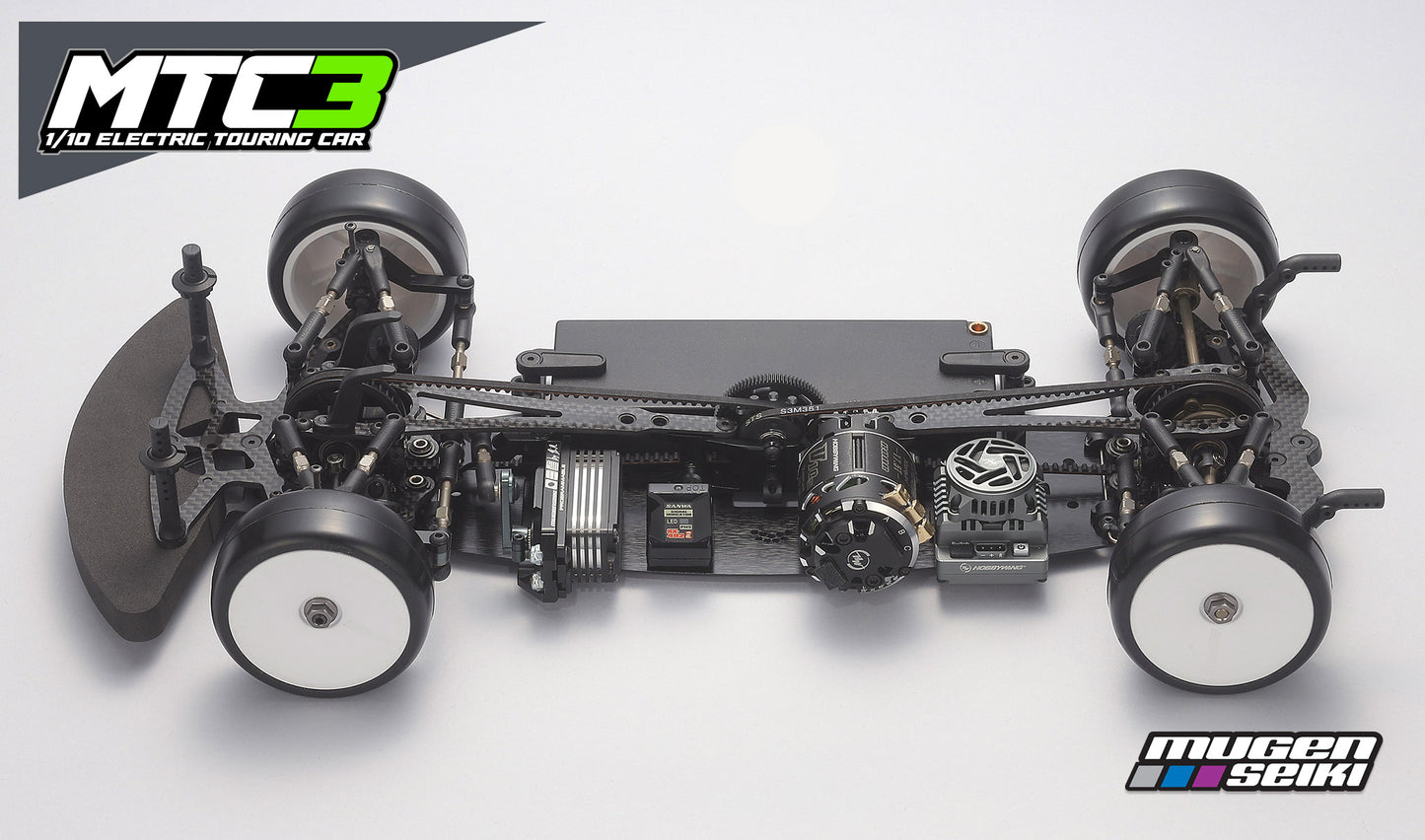

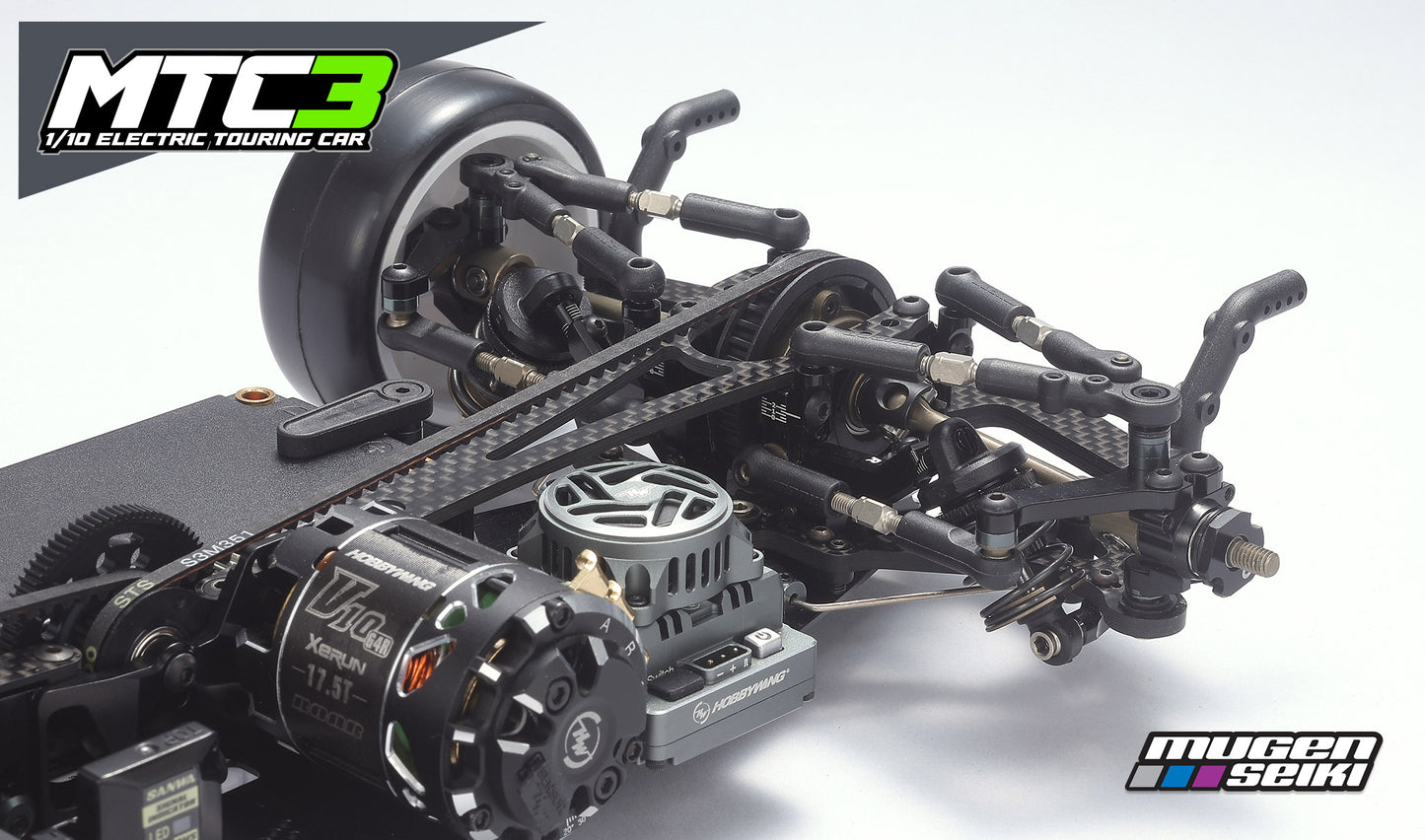

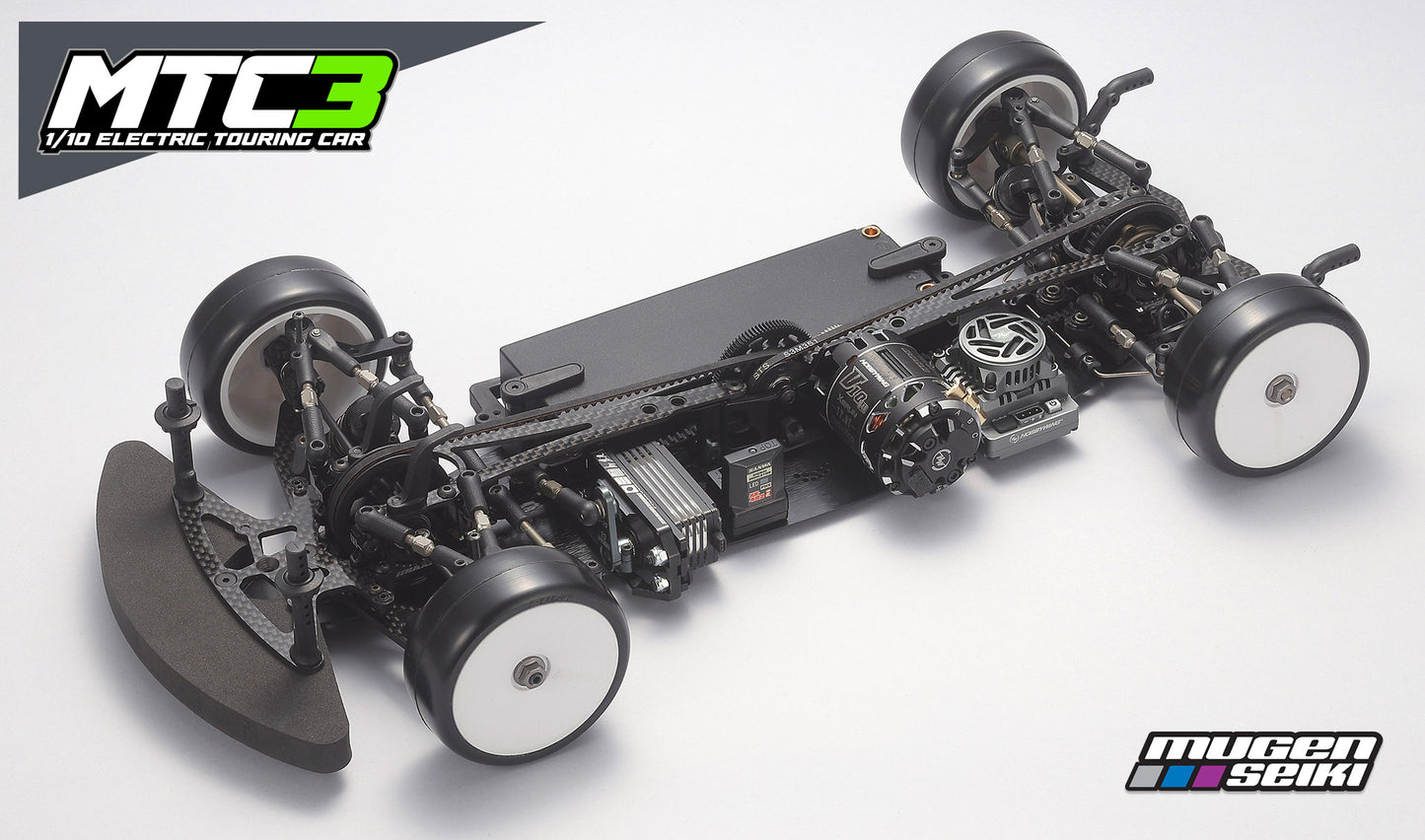

The MTC-3 is coming along with a complete new design with the only parts coming from the MTC-2R being drive shafts, spool, diff, and drive belts. The MTC-3 features a 1.5mm aluminum chassis which will work great on asphalt and carpet. The topdeck design is unique and the short shocks are rounding out a new beautiful new suspension package. The MTC3 features improved handling, tuning, and lap times!

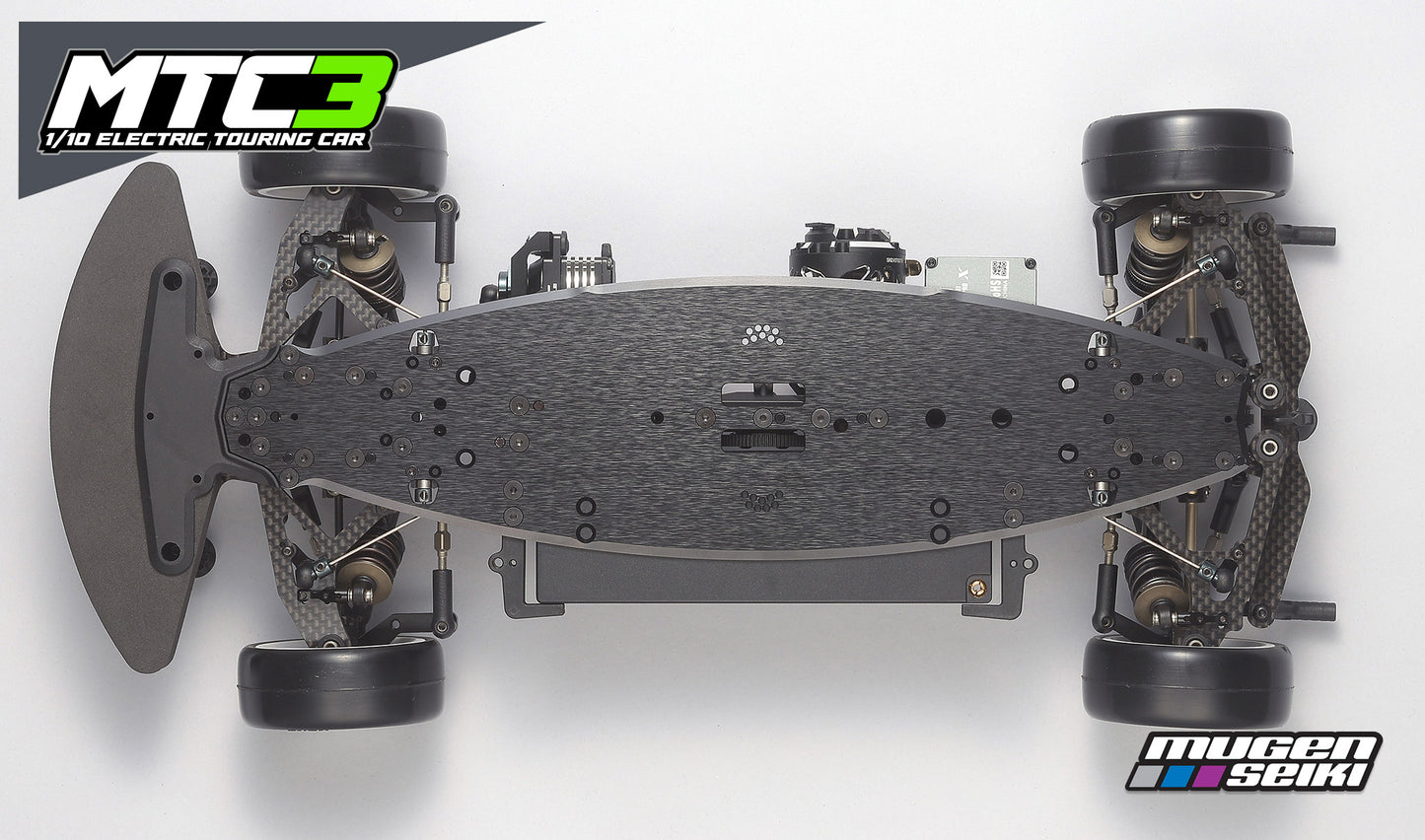

Chassis

• New 1,5mm aluminum chassis.

• Used with standard type screws only (no need for special screws).

• The new chassis provides a wider range of torsion stiffness adjustments to be able to tune for all track conditions.

• The new chassis eliminates the need for a carbon chassis option.

• Lower center of gravity for improved cornering (0.5mm and 0.7mm respectively).

• The chassis design has less overhang to provide more clearance and reduces the chance of the chassis touching the track surface.

Suspension

• New carbon lower arm design.

• New shock and upper arm angle adjustability - no shims needed, no shims to be misplaced.

• Quicker and easier to make setup adjustments.

Motormount

• New designed aluminum motormount.

• New adjustable layshaft height.

• Allows you to use the spur gear in the lowest position possible.

• Ability to use 90T spur gears for a large range of categories and track conditions (stock and modified).

• Better weight distribution.

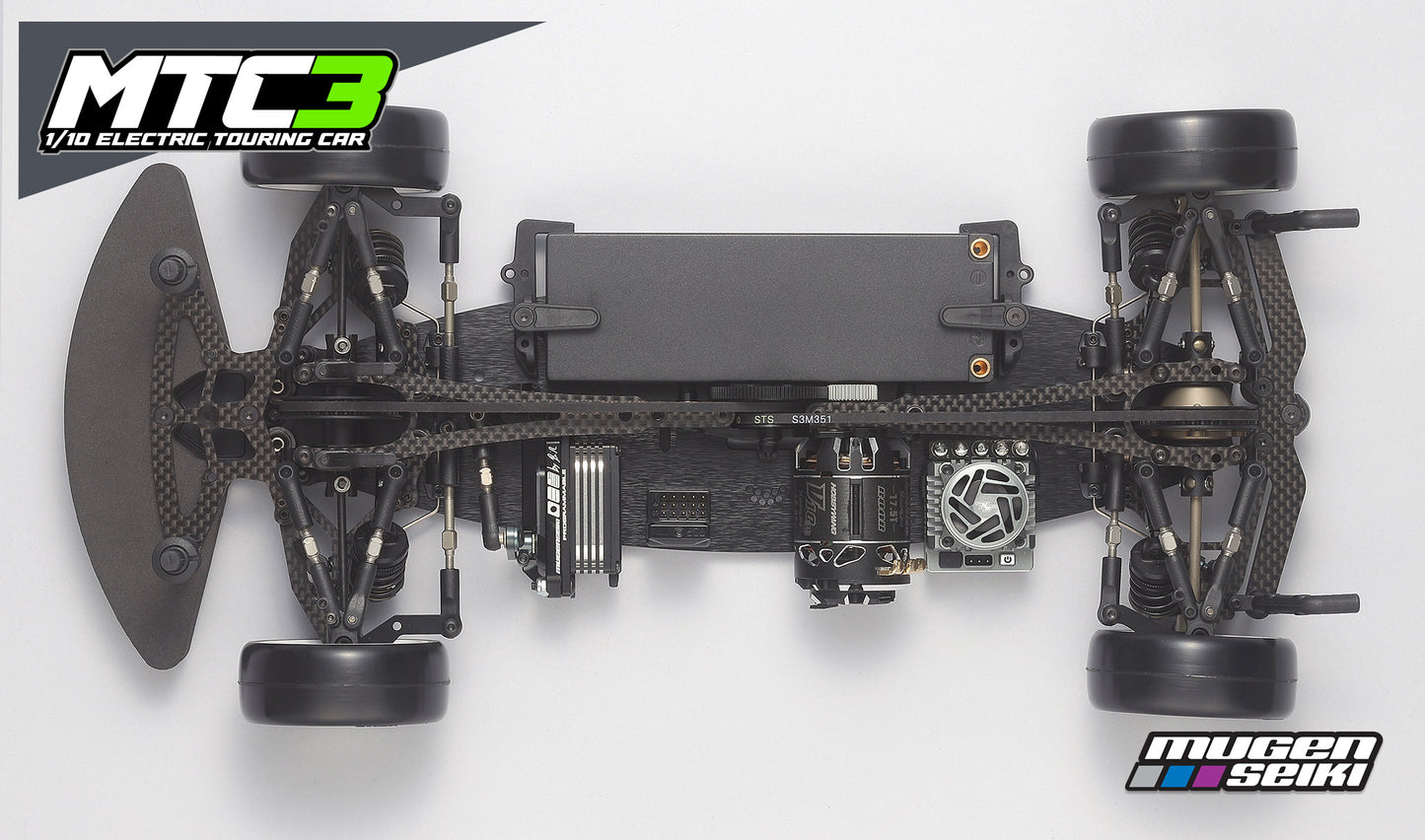

Topdeck

• New carbon topecks with improved topdeck position in the car.

• New topdeck allowing the upper bulkhead plates to be removed completely.

• Easy access to the dear differential without disassembling anything else beside the rear topdeck.

• New bulkheads with compact design

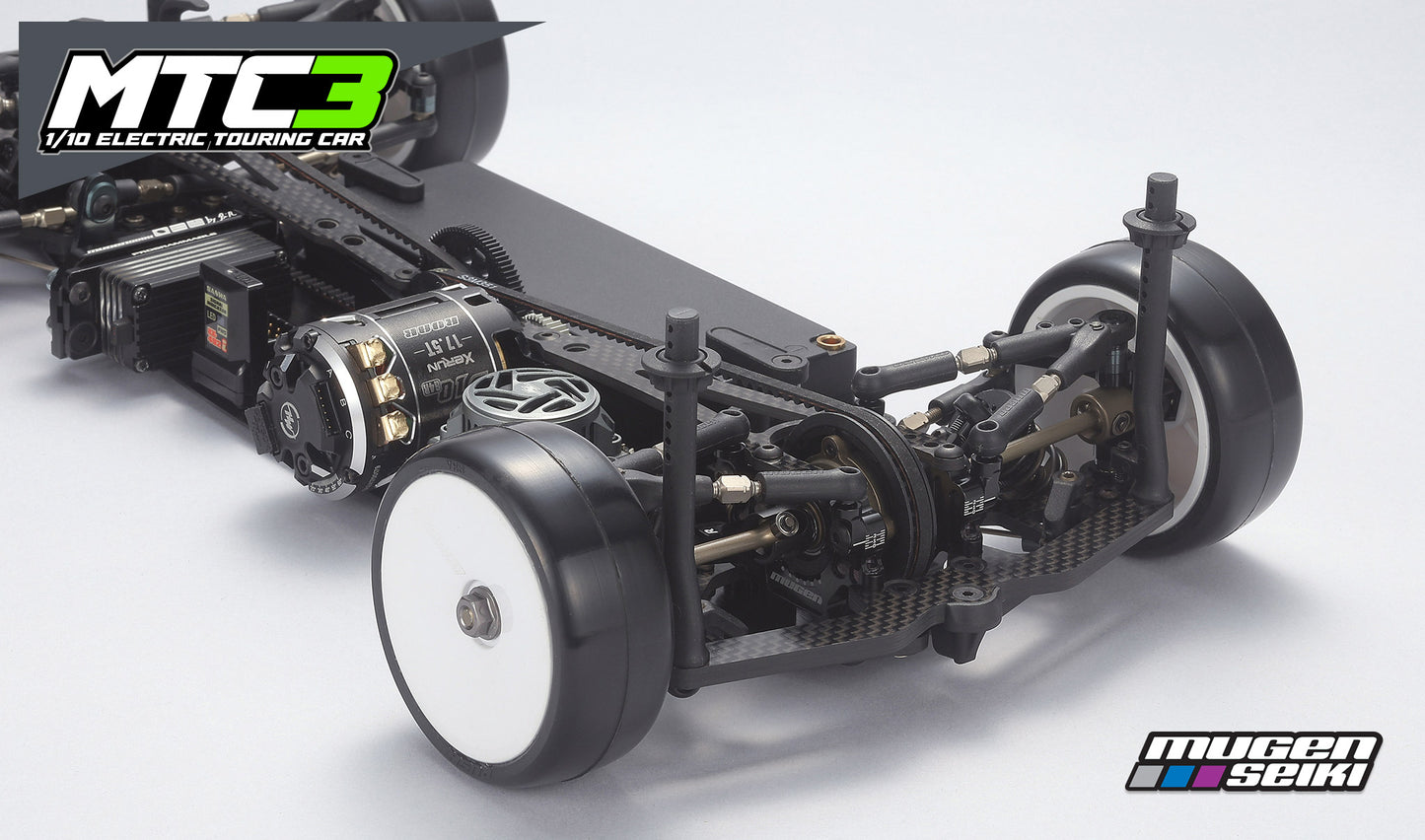

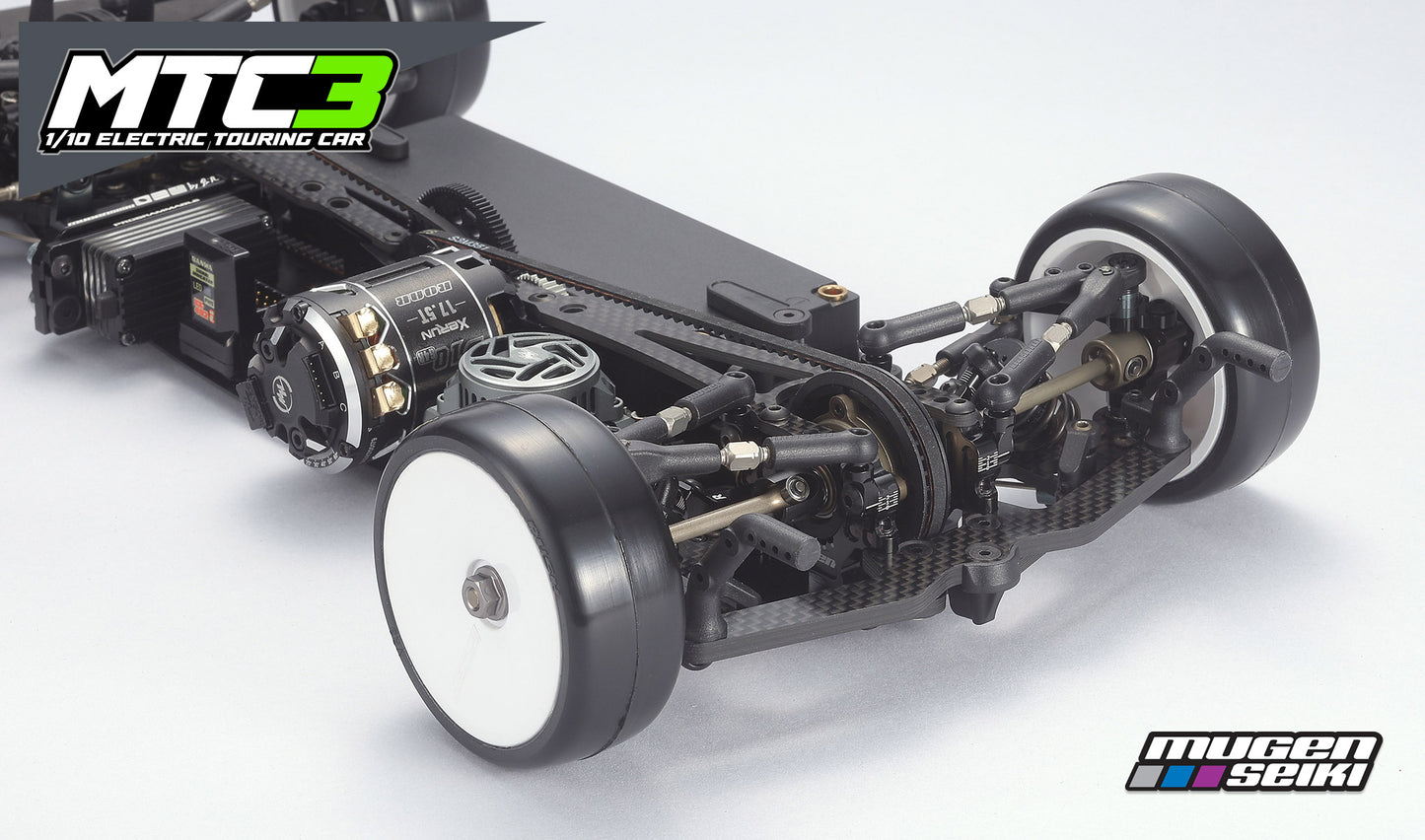

Shocks

• New shock tower screw directly to the bulkheads - no additional parts needed (possible to use in fixed or active position).

• New Short Shocks provide lower center of gravity and improved geomety.

• New range of ultra-short shock sorings.

• Reduced weight of the shock package.

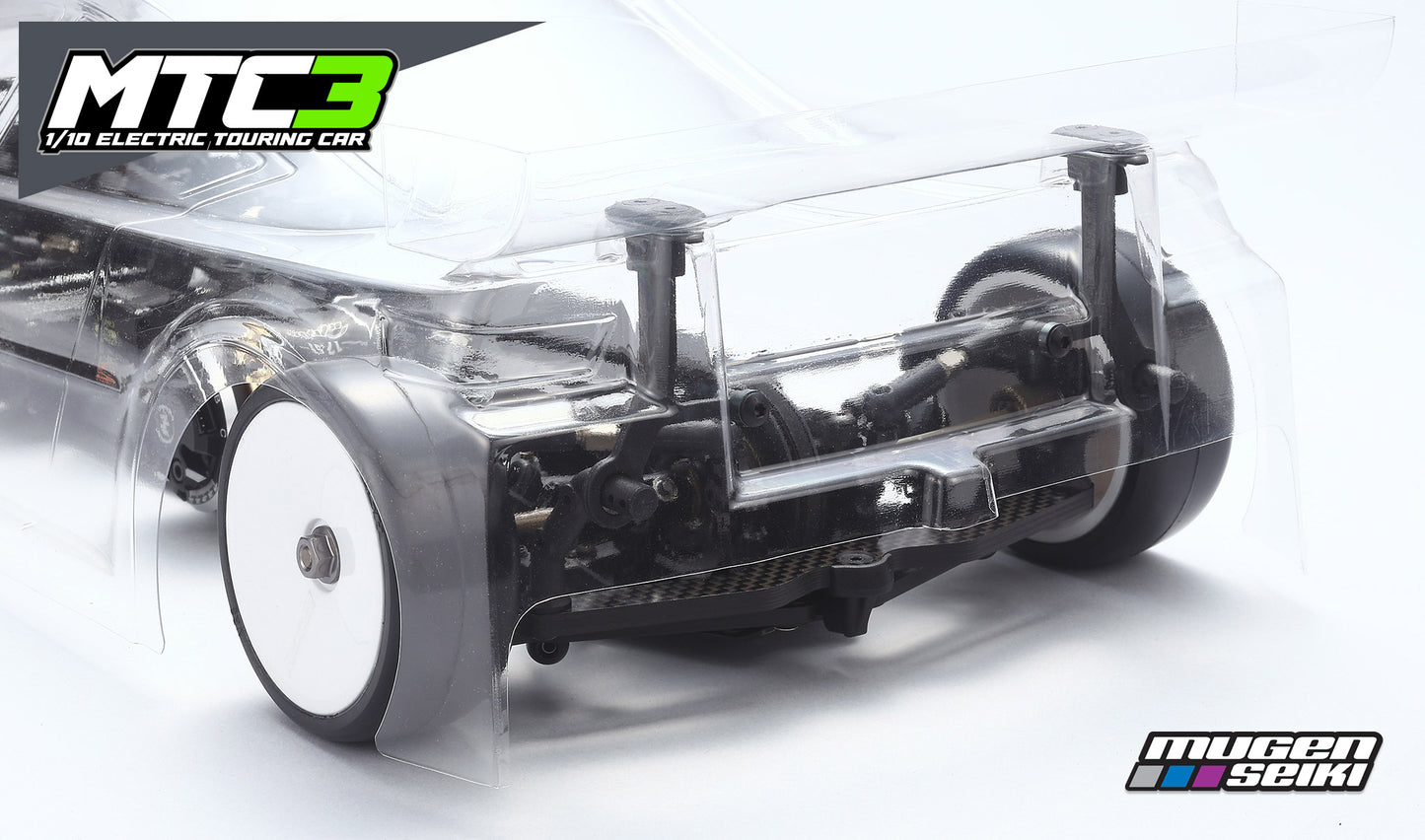

New Bodyposts

• Easier to mount the body shell.

• The front has two distances to make body prep easier.

• The rear has three options available for mounting the body (horizontal, vertical & horizontal with additional part to mount into the wing stay of the bodyshell).

• The rear has an adjustable suspension up travel stopper included in the kit.

Other new features

• New body support included in the MTC3 kit.

• New upper arms with new design using a 6mm ball.

• Two bodystop positions.

• Lightweight bumper - carbon upper plate includes an adjustable suspension uptravel limiter.
