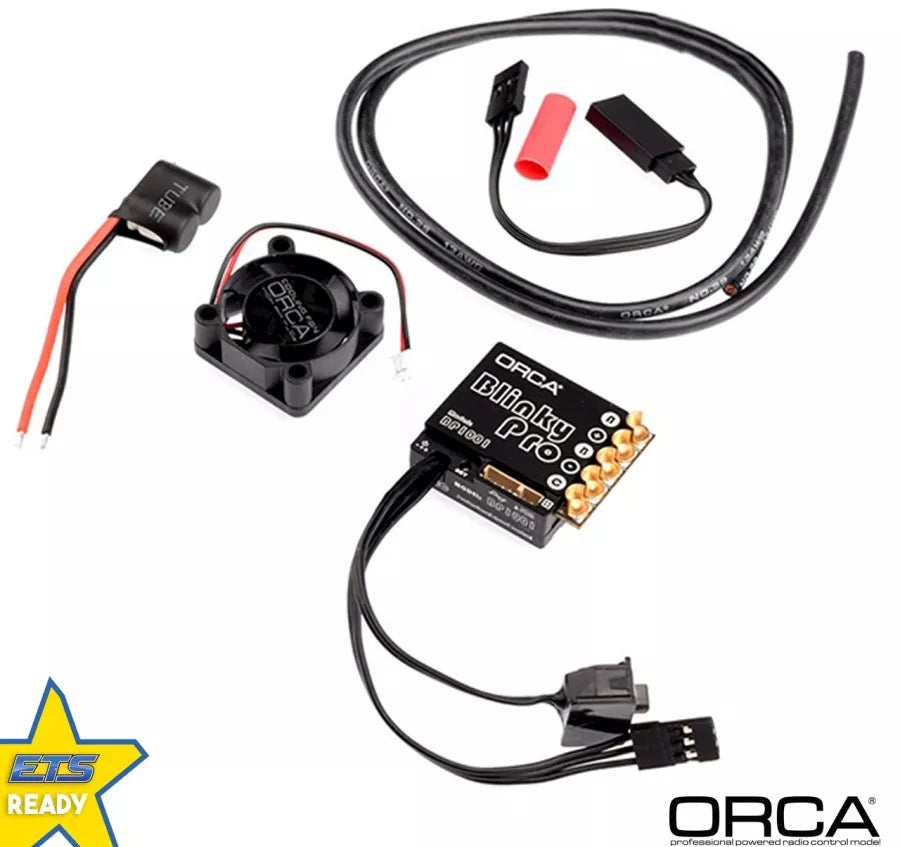

ORCA BP1001 Blinky Pro Brushless Speed Controller (ETS 17.5T approved)

ORCA BP1001 Blinky Pro Brushless Speed Controller (ETS 17.5T approved)

SKU:OR-BP1001-17.5T

Normale prijs €89,90
Normale prijs Sale prijs €89,90
Sale Uitverkocht
Inclusief btw. Verzendkosten worden toegevoegd bij het afrekenen.

Niet op voorraad

ORCA BP1001 Blinky Pro Brushless Speed Controller (ETS 17.5T approved)

This ORCA BP1001 Blinky Pro controller comes with the correct software for the ETS classes Awesomatix Pro Stock.

Of course you can also change the software with the Orca programming card (OR-P19OE1CARD), and use the controller also in the ETS classes 21.5 Stock and 40+ Masters.

All softwares are available for download here (see doenload section below)!



The ORCA Blinky Pro is a speed controller specially developed for the Euro Touring Series and Blinky classes.

It offers the usual ORCA quality and driveability.

The main difference is that there are no boost or turbo timing functions, so the ESC is always in blinky mode.

However, you can still adjust some important paramaters on the brake and "throttle finger" feel.



Setting options:

1. Running Mode

2. Battery Cutoff Voltage

3. Punch

4. PWM Frequency

5. Dragbrake

6. Max. Brakeforce

7. Brake Punch

8. Brake PWM Frequency

9. Max. Reverse Force

10. Neutral Range

11. Motor Link



Features:

  • ETS laser engraving for easy identification
  • Weight: 20.8g
  • Dimensions: 30.5 x 30.4 x 10.4mm
  • Input voltage: 6-11V
  • Continuous current load: 100A
  • Short time current load: 380A
  • Motor Limit: 10.5T
  • BEC: 4A 6V/7.2
