Robitronic Razer ten G2 Brushless Combo 50A 3652 3000kV

Robitronic Razer ten G2 Brushless Combo 50A 3652 3000kV

SKU:R01250

Normale prijs €78,90
Normale prijs Sale prijs €78,90
Sale Uitverkocht
Inclusief btw. Verzendkosten worden toegevoegd bij het afrekenen.

Niet op voorraad

Regelaar + motor.

Geschikt voor:

HFCC Den Haag
Hotwheels Deventer
IDFM



Product information "Robitronic Razer ten G2 Brushless Combo 50A 3652 3000kV"

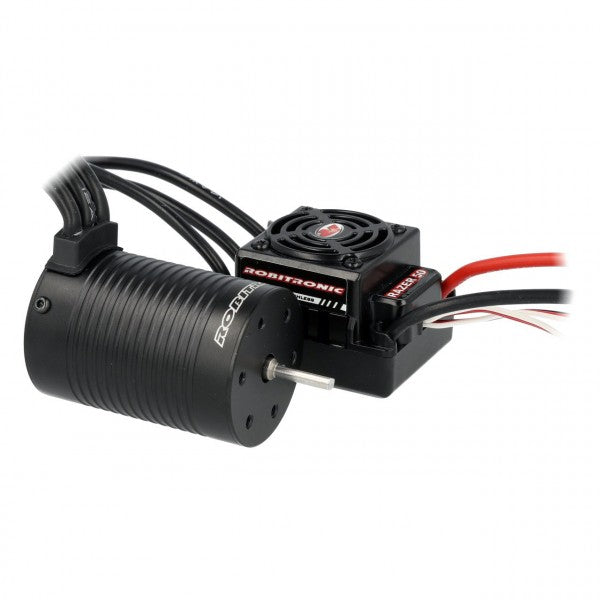

Whether it's 1/10 On-Road or 1/10 Off-Road, the action starts with the Razerten G2 Combo. The Razerten G2 60A ESC is always the top choice when reliability, efficiency, and durability are paramount. With extensive adjustment and programming options, it leaves nothing to be desired. All cables are pre-wired and ready to connect, no soldering required. Paired with the 3000kV Razerten motor, it delivers a sensorless experience with immense power. The motor's disassemblable CNC machined aluminum housing and precision-balanced rotor with high-quality ball bearings are top-class features.

Features (ESC):

  • More compact and modern than its predecessor
  • Fully water and dustproof ESC (not applicable to the motor)
  • ON/OFF switch with setup button
  • S-BEC with 6V and 3A peak current
  • Plug and Play, battery and motor connectors pre-soldered
  • Multiple protection features: low voltage cutoff, thermal protection, and signal loss protection
  • Easy programming via setup button
  • Separate programming port, easy connection for optional LED programming card

Features (Motor):

  • 4-pole rotor design for high torque and quick response
  • CNC machined high-strength aluminum housing for optimal heat dissipation
  • Motor winding made of pure, double-insulated copper wire
  • Precision ball bearings for smooth operation and longevity
  • Highly flexible silicone connection cables with pre-soldered 4mm connectors
  • High-strength, polished 3.17mm steel rotor shaft

Technical Specifications:

ESC
Item No.: R01225
Current: 60A
Type: Sensorless
Cells: 2-3S LiPo / 6-9 cells NiMH
Motor Limit: 2S: 3652/3660 motor, kV = 6000
3S: 3652/3660 motor, kV = 3500
BEC: 6V @ 3A
Fan: Yes, powered by BEC
Programming Port: Yes
Battery Connection: T-Plug
Motor Connection: 4mm
Dimensions: 46 x 36.5 x 35.5mm
Weight (incl. Cables): 98.2g
Application: 1/10 On-Road, Buggy, Short Course Truck (2WD)
Motor
Item No.: R01230
kV Rating: 3000kV
Cells: 2-3S
Poles: 4
Outer Diameter: 35mm
Length: 52mm
Shaft Diameter: 3.17mm
Shaft Length: 15mm
Weight (incl. Cables): 198g
Application: 1/10 Onroad, Buggy, light SCT/Truck/MT


Delivery:

1x Razer ten G2 ESC with 60A, pre-wired with battery connector and motor connection
1x Razer ten Motor with 3000kV, pre-wired with 4mm connectos
1x Manual

Accessories:

R01269 Razer LED Program Box
