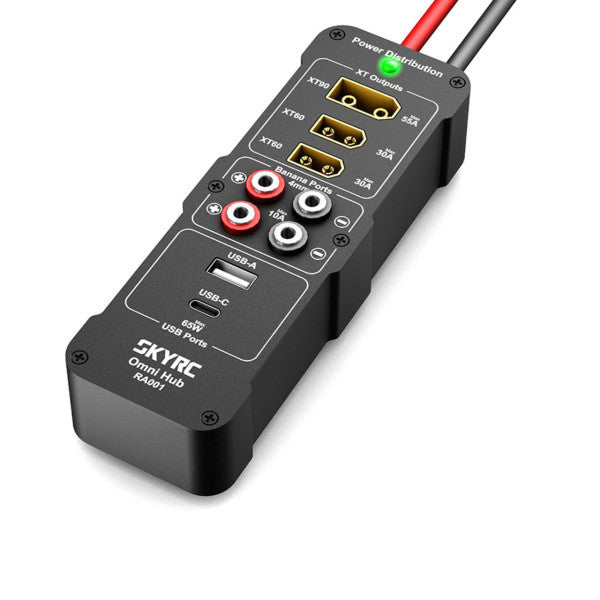

SkyRC Omni XT90 Power Distribution Hub
SkyRC Omni XT90 Power Distribution Hub
SKU:SK-600163-01
Niet op voorraad
Couldn't load pickup availability
The SkyRC Omni XT90 Power Distribution Hub is the ideal power distribution solution. With its XT90 input and a maximum continuous power output of up to 2000 W, the Omni Hub powers multiple chargers, batteries and devices simultaneously – clean, efficient and through a single, compact setup. Thanks to its practical power-strip design, the hub is equally at home on the workbench or on the go in a backpack. In addition to the high-current outputs (XT90, XT60, 4mm banana sockets), the hub also features a USB-C fast charging output with up to 65 W as well as a USB-A output.
Multiple built-in protection mechanisms ensure safe and stable power delivery at all times.
Specifications:
| Input Voltage: | 8-36V |
| Max. Input Current: | 55A |
| USB-C Output: | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A – max. 65W |
| USB-A Output: | 5V/3A, 9V/2A, 12V/1.5A – max. 18W |
| USB-C + USB-A simultaneous: | 5V/3.6A – max. 18W |
| XT90-F Output: | max. 55A |
| XT60-F Outputs: | max. 30A |
| 4mm Banana Sockets: | max. 10A |
| LED Indicator: | Green (operating) / Off (standby) |
| Dimensions: | 151 x 50 x 29.5mm |
| Weight: | 310g |
Note:
*The maximum output power of 2000W is achieved in combination with the SkyRC eFUEL PSU2000 power supply (AC 220-240V version, max. 1980W). The eFUEL PSU2000 is not included.
Package Contents:
1x Omni XT90 Power Distribution Hub
1x Manual
