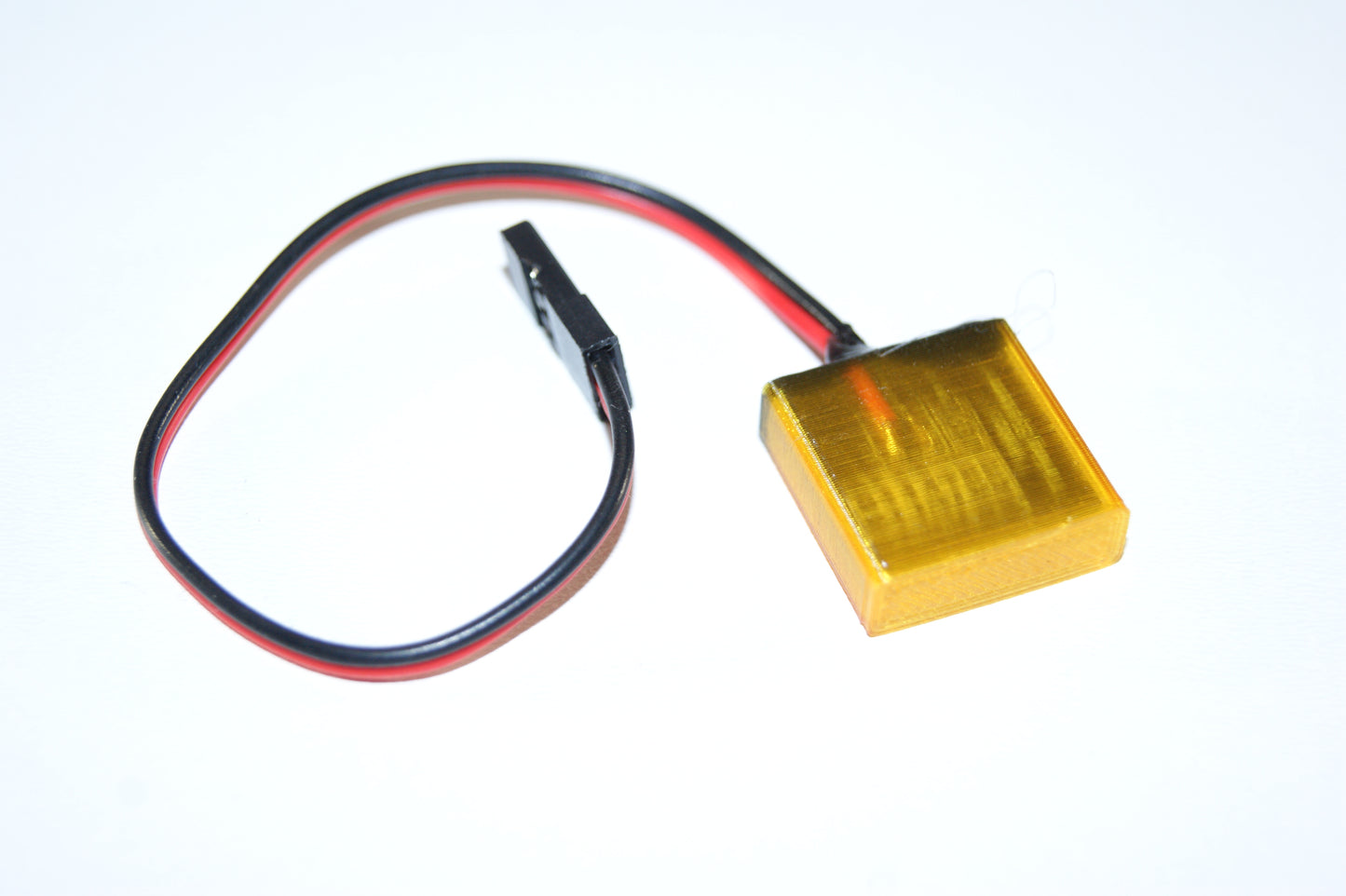

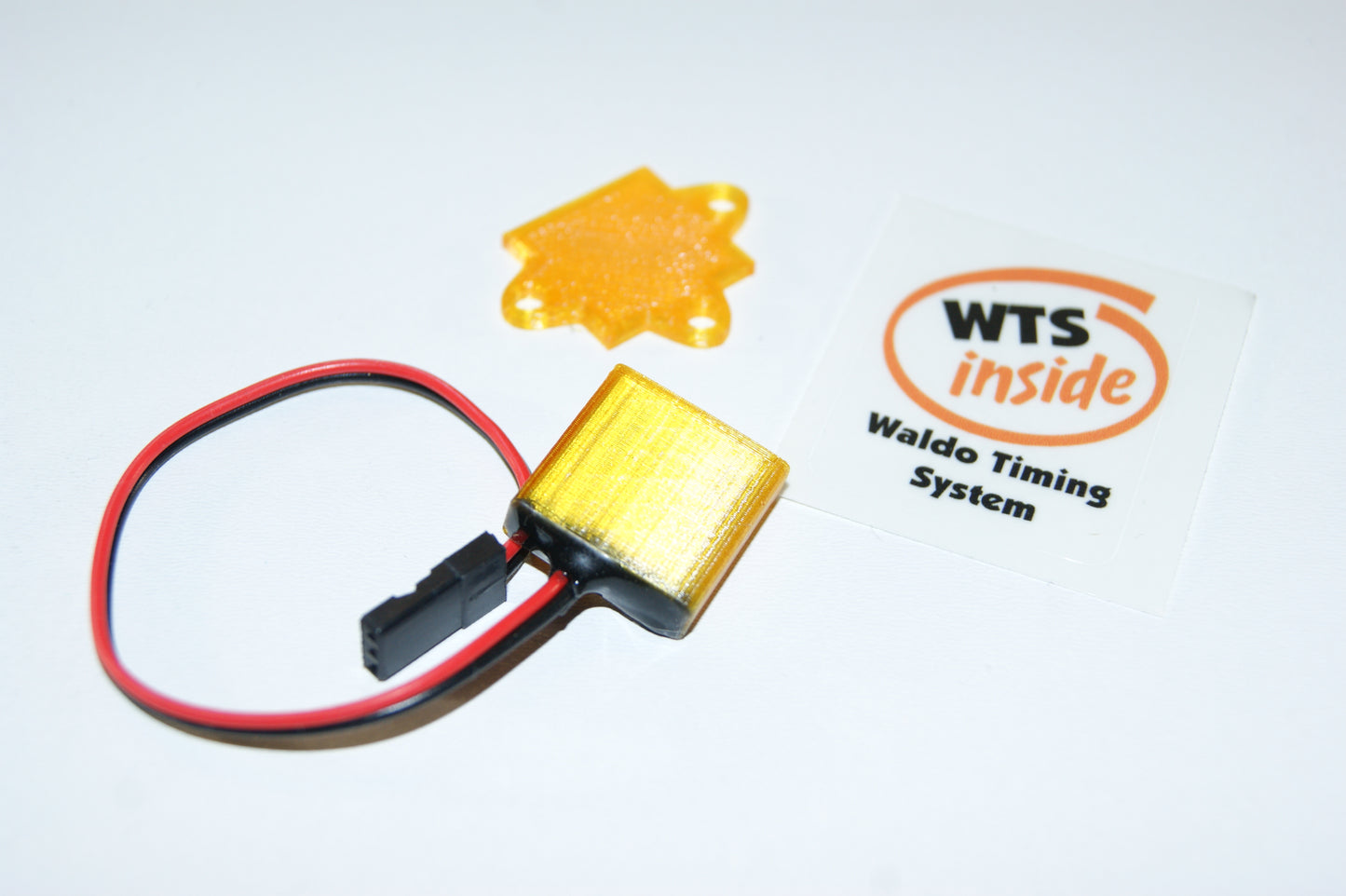

Waldo Timing System Transponder

WALDO TIMING SYSTEM

Instruction:

The WTS Transponder is compatible with all RC System including RC Version 4 Decoders with Firmware 4.4 or lower.

Operation is purely lap counting and timing using its 7 DIGIT ID number.

The Transponder is ready to be used right away simply by connecting to a Battery or plugging into a free Receiver Channel or BATT Socket.

Specification:

Dimensions: 19x19x6mm
Weight: 4gr
Temperature Range: 0-50 degree (Celsius)
Humidity: max 90% relative
Signal Transfer: Magnetic Induction
Transponder Position: Horizontal Max Height 15cm
Power Feed: RX Channel or Battery
Connection Plug: Standard Servo Plug
Operating Voltage: 3V-16V DC (Reverse Polarity Protected)
Power Consumption: 14mAh @ 6V
Display LED: Ultra-Bright RED
